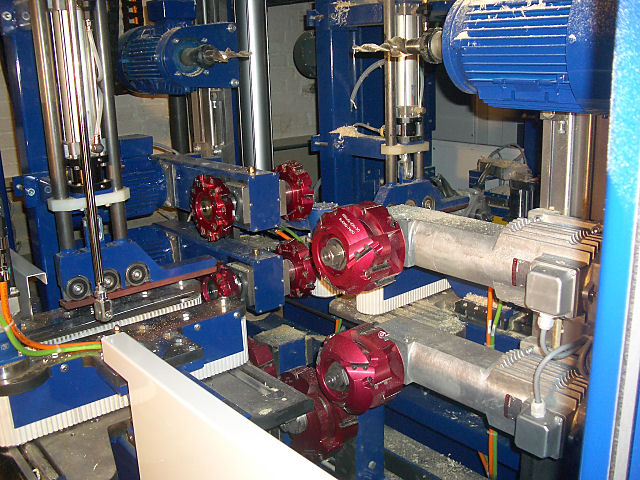

Here in the
Krusimatic G2's Frame 2, you can see 4 horizontal and vertical mills in the
front, with their red anodized hubs and replacable blade inserts with their
massive their drive aggregates - These mills cut the corner connections, around
all four sides, in just two passes. Above them are two drill motors, each with
countersinking bits. They allow boring and counterboring to prevent breakout
of the wood at the far end of the hole. Just below, the smaller four mills
will turn and pivot into action cutting alternately left or right tenons and
dovetails at the end of logs for airtight, seamless wall extensions. The extreme
accuracy of the CNC control makes this possible.
Be sure to look at the videos to appreciate how these mills are able to glide around and approach the work from all sides of the timber.
The picture gives sense of the extreme ruggedness of the Krusimatic G2.
